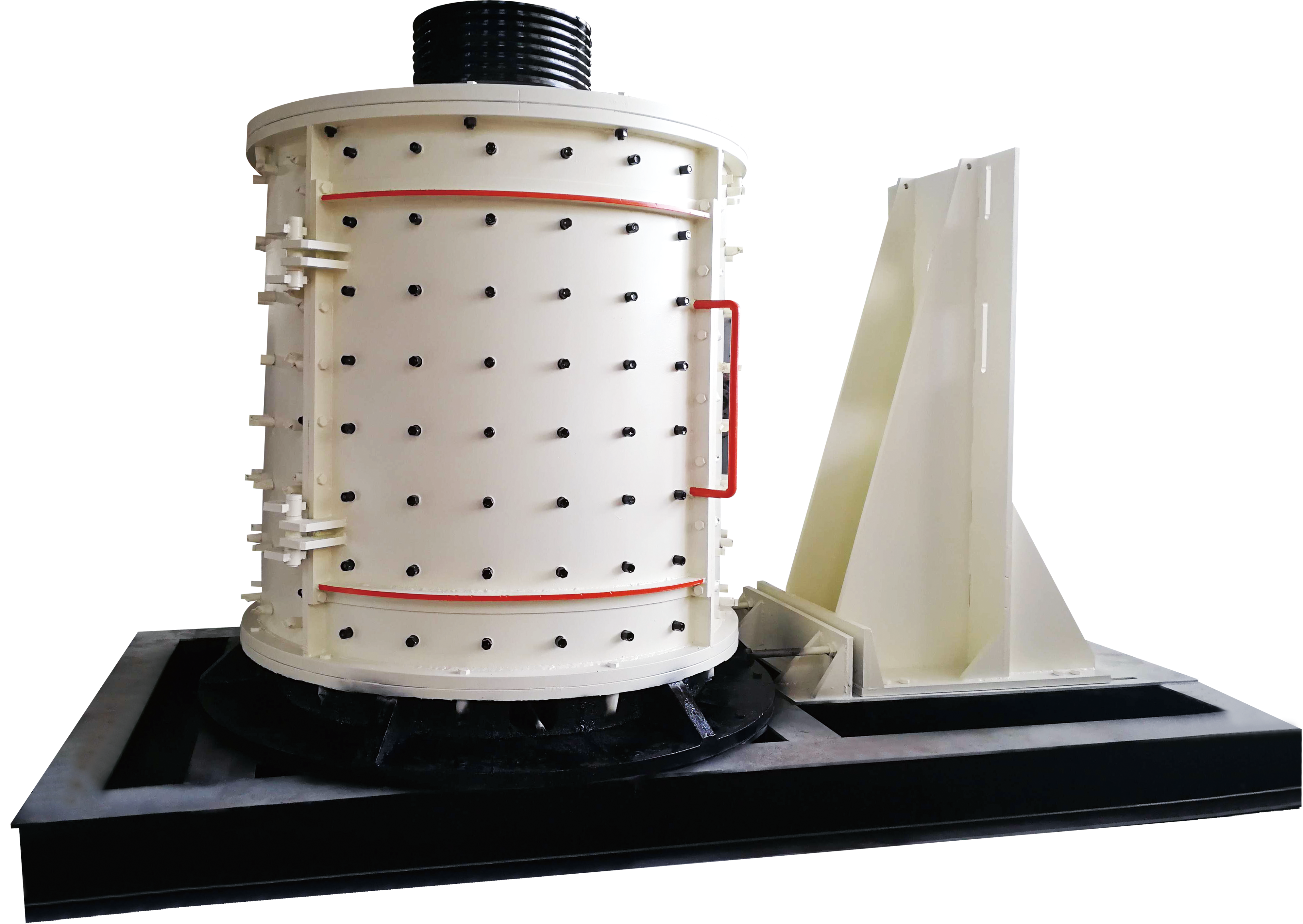

Vertical Shaft Compound Crusher

Vertical shaft compound crusher is a new type of fine crushing and coarse milling product optimized by combining domestic and foreign crushing technologies. It is widely applied in mining, metallurgy, building materials, refractories, cement clinker, and glass industries for processing medium-hard materials. Unlike conventional crushers, its unique vertical non-clogging design makes it ideally suited for crushing materials with high moisture content (up to 12-15%) without sticking. The stone-on-stone and stone-on-iron crushing principles ensure high continuous production capacity and excellent cubical product shape.

Features:


High fine-crushing efficiency and big reduction ratio.

Excellent moisture adaptability with a non-clogging vertical chamber.

Screw-bolt adjustment for flexible and precise particle size control.

Simplified structure and convenient maintenance via the side-open door.

Optimized rotor design and long service life of wear parts.

Smooth operation with minimal noise and low vibration.

Superior eco-friendly sealing to reduce dust emission.

Benefits Features

1. Advanced non-clogging design for high-moisture materials.

The vertical, screenless structure prevents material clogging and sticking, making it highly effective for processing wet iron ore, limestone, or coal gangue with zero dead space.

2. Dual crushing principles, lower wear-cost.

Utilizing both "stone-on-stone" and "stone-on-iron" crushing mechanisms, materials collide at high speeds within the chamber. This maximizes crushing force while significantly reducing the direct wear on liners and hammers.

3. Patented side-opening door for easy maintenance.

Equipped with a quick-access side door, allowing operators to inspect internal components and replace wear parts (like hammers and rotors) easily without dismantling the entire machine top.

4. Flexible particle size control with no grate bars.

By adjusting the rotor speed and the internal gap, the output size can be flexibly controlled. The absence of bottom grate bars ensures uninterrupted material flow and eliminates the risk of grate breaking.

5. Premium alloy wear parts, extended service life.

All throw heads, counterattack plates, and hammers are made of high-chromium, high-manganese multi-element alloys, which vastly improves durability and lowers the overall operational cost.
