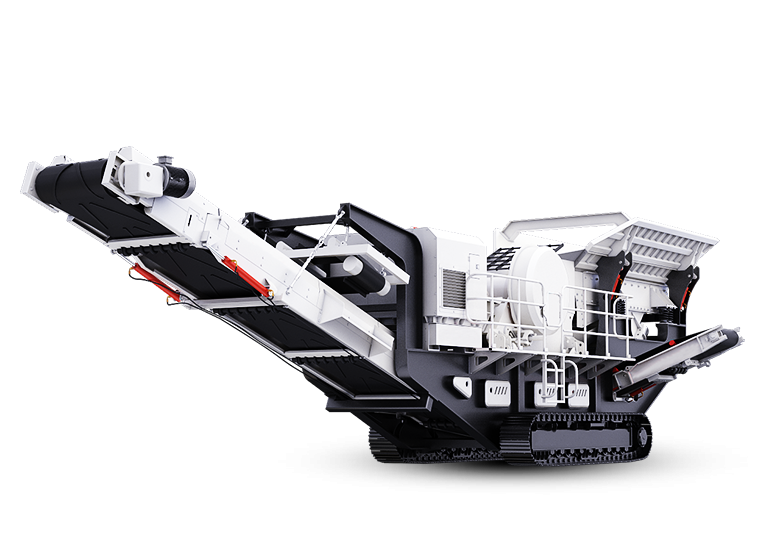

Crawler Mobile Jaw Crushing Plant

Crawler mobile primary crushing plant (tracked primary jaw crusher) is a high-performance, fully autonomous crushing solution engineered for the toughest primary reduction stages. Built on a heavy-duty hydraulic tracked chassis, it integrates a high-capacity grizzly feeder with a powerful, heavy-duty jaw crusher. Operated via a wireless remote control system, this plant excels in processing large, hard, and abrasive run-of-mine (ROM) boulders, concrete debris, and blasted rocks directly at the face of quarries or recycling sites. It eliminates the need for primary haulage, stream-lining the entire production line with exceptional durability.

Features:


Robust hydraulic crawler tracks with wireless remote control for superior tactical mobility.


Heavy-duty primary jaw crusher with a large feed opening for massive boulders.


Integrated vibrating grizzly feeder for effective pre-screening of fines.


Foldable hydraulic conveyors for rapid setup and reduced transport dimensions.


Smart PLC control system with automated sensors for real-time load monitoring.


Highly fuel-efficient diesel-electric dual-power drive for minimized running costs.


Extra-reinforced structure built with high-tensile steel for extreme working conditions.

Benefits Features

1. Powerful tracked mobility for harsh quarry environments.
Driven by an industrial-grade hydraulic crawler track system, this plant can travel independently over rugged quarry floors, mud, and steep inclines. The wireless remote control allows operators to position the machine safely and efficiently near the blasting face.
2. High-capacity primary jaw crusher with massive crushing force.
Equipped with our heavy-duty jaw crusher featuring an optimized deep-chamber design. The large feeding intake easily accepts oversized boulders, and the high-torque eccentric shaft delivers massive compressive force to shatter the hardest rocks with minimal energy.
3. Integrated grizzly feeder for efficient pre-screening.
The heavy-duty vibrating feeder features adjustable grizzly bars that automatically separate the natural fines and dirt before the material enters the crushing chamber. This bypass action dramatically reduces wear on the jaw plates and increases overall throughput.
4. Hydraulic folding design for effortless transport.
The main discharge conveyor and hopper walls are hydraulically foldable. This allows the massive primary plant to transition from a compact transport configuration to a fully operational status within 20–30 minutes without requiring external cranes.
5. Intelligent PLC automation and dual-power efficiency.
An intuitive onboard PLC system monitors engine loads, conveyor speeds, and bearing temperatures continuously. Supporting both a direct-drive diesel engine for high-torque crushing and an external grid connection for auxiliary operations, it maximizes uptime and fuel economy.
